Well Intervention Vessels Solutions

Our Well Intervention Vessels service line offers a range of barges to aid carrying out well intervention solutions in swamp locations. Each barge is well equipped with facilities and equipment to aid well intervention activities ensuring that our clients can easily enhance and optimize the production of their wells in swamp locations.

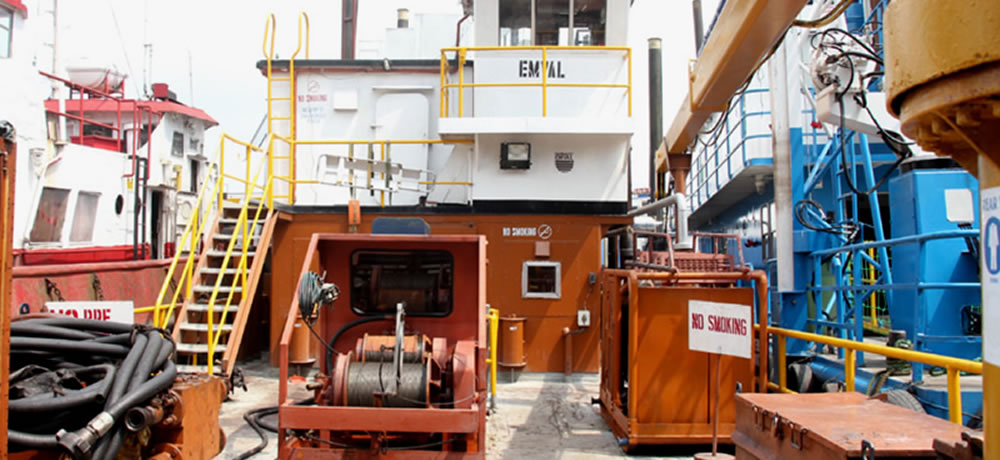

EMVAL Barge III Specifications

Dimension

Full length: 21.9 meters

Breadth: 11.5 meters

Depth (Barge only): 2 meters

Open deck area: 12 meters

Full height from the Barge deck: 6.85 meters

Legs

Number: 2 Spud Legs

Length: 35 meters

Size (diameter): 16”

Wall Thickness: Schedule 80

Propulsion

Main Engines: Two Detroit Diesel Engines

Rates HP: 300HP Each

Reduction Gear: Allison Transmissions, HT 700D

Estimated Speed: 6 knots

Generators

Engines: Two Detroit generators, 471 Series

Generator: 50 Kw (62.5 KVA)

Cranes

STARBOARD CRANE: 20

Length: 21.3M (70ft)

PORT CRANE: 6 Tons

Boom Length: 15.3M (50ft)

Capacities

Fuel: 7,925 US Gallons (30,000 Litres)

Hydraulic Oil: 660 US Gallons (2,500 Litres)

Lubricating Oil: 105 US Gallons (400 Litres)

Portable Water: 528 US Gallons (20,000 Litres)

Maximum Deck Cargo: 45.5 Tons

Gross Tonnage: 146.2 Tons

Living Quarters

Bunk: 17

A/C (2 Central units): 3HP and 5HP

Water heater: 100 Litres

Marine Toilet seat: 5

Galley: 10 seats

Refrigerator: 2

Freezer: 2

Microwave: 2

Electric Cooker: 4 Burner and Oven
